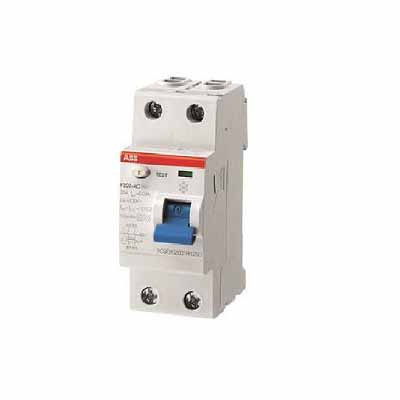

ABB F202 AC-40/0,03, Residual Current Circuit Breaker (RCCB), 2 Pole, 30mA, 40A, AC The RCCBs F200 series assures Protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. A large offering for standard instantaneous and selective AC and A types All sizes up to 63 mA with sensitivity thresh olds up to 1 A are offered in all possible pole configurations ABB RCDs carry many marks and approvals for the worldwide market Suitable for Protection against AC earth leakage current Can be used as a main device providing ground fault Protection against earth leakage for several MCB branch devices Technical Standards: IEC 61008 Operating Characteristic: Instantaneous Type of Residual Current: AC type Rated Residual Current:30mA Rated Current (In): 40A Number of Poles: 2 Power Loss:at Rated Operating Conditions per Pole 2.4 W Ambient Air Temperature:Operation -25 ... +55 °C Storage -40 ... +70 °C Color: WHITE Weight(KG): 0.200
