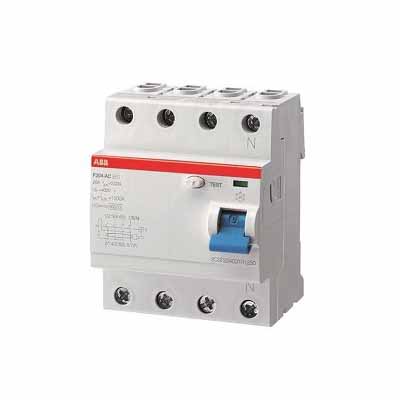

Devices of protective shutdown of ABB F200 AC Purpose Protection against alternating sinusoidal current leakage to earth; personnel protection in indirect and direct (at I = 30mA) touch; application in circuits with resistive and inductive loads. Applications Housing facilities Commercial properties Industrial facilities Color: WHITE Weight(KG): 0.500
Dielectric breakdown voltage, kV 2.5 Dismantling Possible without tools Additional contact Yes Contact status indication Yes Overvoltage category III, decoupling ability Terminal terminal Bidirectional, cylindrical The maximum allowable off. leakage current capability, kA one Maximum allowable pulse voltage (1.2 / 50) Uimp, kV 6 Maximum allowable short-circuit current, kA ten Mechanical life cycle 20,000 Insulation voltage, V 500 Rated current 80A Parallel trip unit Yes Undervoltage release Yes Instrument handle Blue, sealable Section of connected conductors, mm2 25 mm2 Signal contact Yes Ambient temperature, ° C -25 ... + 55 Storage temperature -40 ... + 70 Type (detected leakage current) AC Pull force, N * m 2.8 Network voltage frequency, Hz 50 ... 60 Sensitivity I N N, mA 30 mA Electric life cycle 10,000 Number of poles 4 p. Installation Mounting rail Rated voltage, V 230 / 400V-240 / 415V Degree of protection IP20
