Characteristics of the circuit breaker 40 A ABB SH203-B40 Equipment series: S 200, modular equipment for currents up to 63A Rated mains voltage: 230/400 V ~ Network frequency: 50 Hz Rated current: 40 A Breaking characteristic (setpoint): Type B Number of poles: 3 Number of occupied modules on a din-rail ( 17.5mm): 3 Breaking capacity: 6 kA Cross-section of the connected conductor: Hard cable 25 mm² Flexible cable: 25 mm² Electrical wear resistance: 10,000 cycles Mechanical wear resistance: 20,000 cycles Operating temperature: - 25 С ... + 55 С Protection class IP20 Article: SH203-B40 Order code: 2CDS213001R0405 Manufacturer: ABB (ABB, Switzerland) Color: WHITE Weight(KG): 0.200

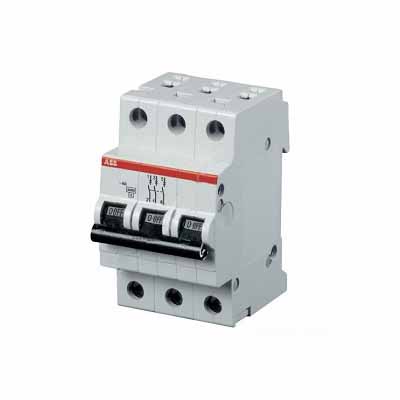

ABB SH203-B40, Miniature Circuit Breaker (MCB), Type B, 3 Pole, 40A Characteristics of the circuit breaker 40 A ABB SH203-B40 Equipment series: S 200, modular equipment for currents up to 63A Rated mains voltage: 230/400 V ~ Network frequency: 50 Hz Rated current: 40 A Breaking characteristic (setpoint): Type B Number of poles: 3 Number of occupied modules on a din-rail ( 17.5mm): 3 Breaking capacity: 6 kA Cross-section of the connected conductor: Hard cable 25 mm² Flexible cable: 25 mm² Electrical wear resistance: 10,000 cycles Mechanical wear resistance: 20,000 cycles Operating temperature: - 25 С ... + 55 С Protection class IP20 Article: SH203-B40 Order code: 2CDS213001R0405 Manufacturer: ABB (ABB, Switzerland)
