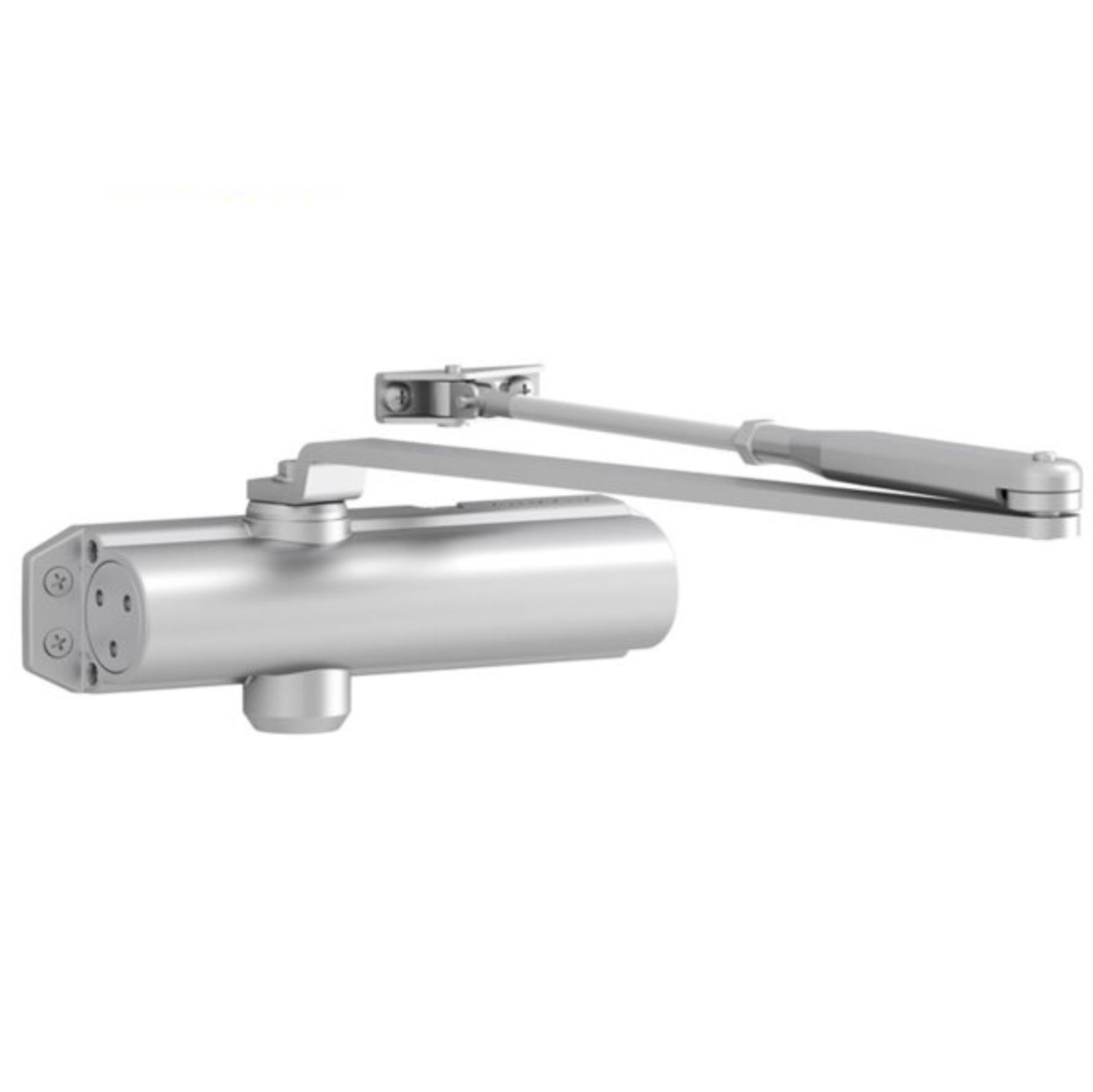

For Single leaf doors up to size EN4 (1100 mm) Features of DC120 Rack and Pinion door closer with link arm In compliance with EN1154, size EN2/3/4 For single action doors up to 1100mm Characteristics of DC120 Can be used for left and right-handed doors Suitable for fire and smoke protection doors Closing speed, latching speed and back-check continuously adjustable using regulating valves Thermodynamic valves for consistent performance Closing force configurable Opening angle up to 180° (105° in mounting position size EN4) Standard colours: Silver EV1; White, similar to RAL9016; Black, similar to RAL9005 Color: SILVER Weight(KG): 2.000
Can be used for left and right-handed doors Suitable for fire and smoke protection doors Closing speed, latching speed and back-check continuously adjustable using regulating valves Thermodynamic valves for consistent performance Closing force configurable Opening angle up to 180° (105° in mounting position size EN4) Standard colours: Silver EV1; White, similar to RAL9016; Black, similar to RAL9005
