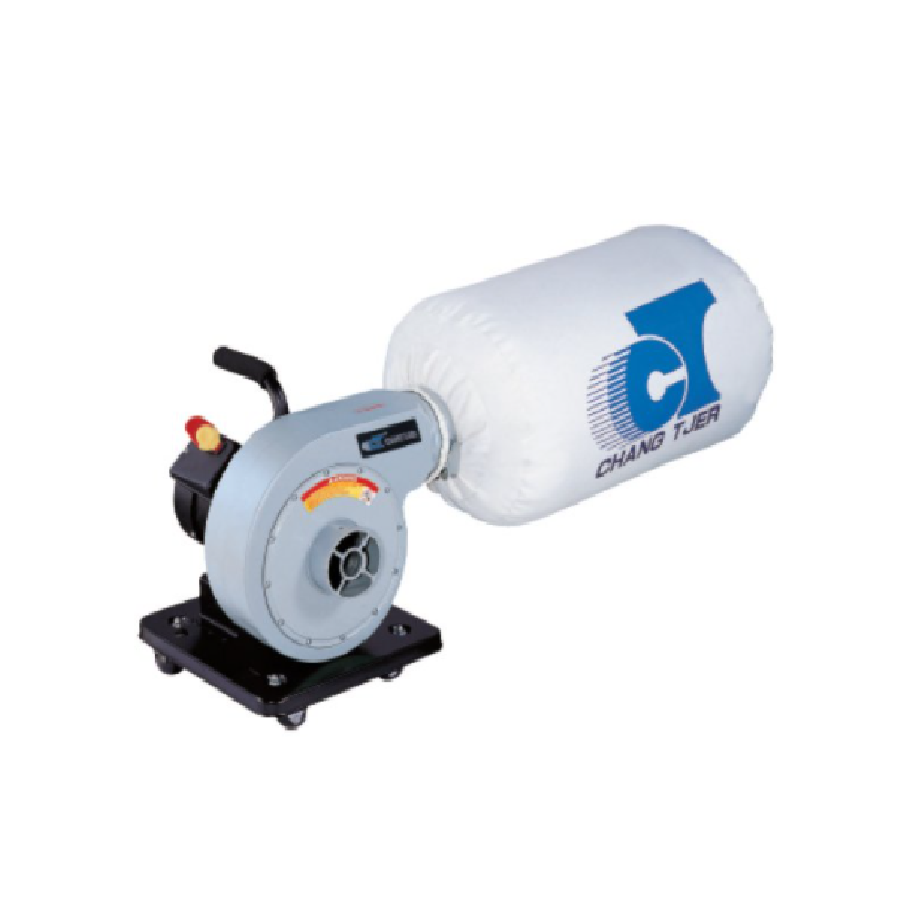

Industrial quality motor and specially designed blower impeller for maximum performance.
Each caster allows for total mobility.
Dust collector bags always come with an elastic band for 30 micron filter bag for easy installation.
Metal strap bag clamp will tie up collection bag completely.
Extensive line of accessories to control the toughest dust collecting jobs.
Solid and rigid housing design for the blower system.
Color: WHITE
Weight(KG): 22.000
MODEL
UB-50P
Motor
1 HP / 60 HZ
0.75 KW / 50 HZ
Impeller Size
10-1/2″
267 mm
Air Suction Capacity W/O Bag
750 CFM
1000 m3/h
Max. Static Pressure
5.6 InH20
142 mmAq
Inlet Diameter
4″ x 1
102 mm x 1
Bag Capacity
15 gallons
60 liter
Noise Rate (@3M)
70 dB
Overall Size (L x W x H)
1100 x 400 x 500 mm
Packing Size (L x W x H)
472 x 402 x 464 mm
N.W. / G.W. / Cuft
20 kgs / 22kgs / 3.2′
