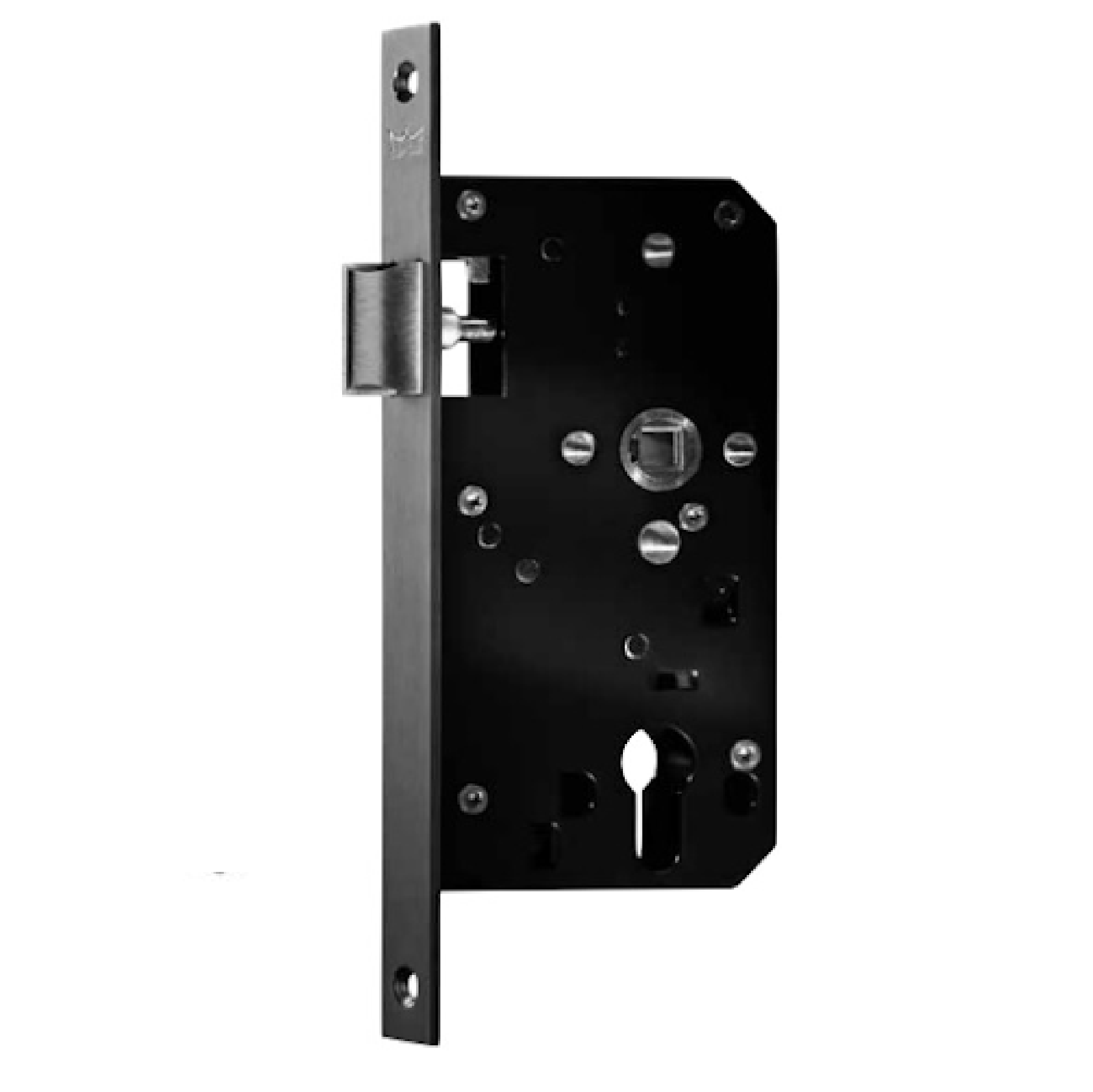

Dorma 389SG 55MM Mortise Latch Lock

Description
Specification

Grade 3 - EN12209, approved for fire-rated doors with CE certificate
Lock case size DIN 182 51-1, closed case with sleeves, zinc plated, black painted
Lock case prepared for standard fittings
Latch handing is reversible
Latch, stainless steel, satin
Clamp follower, stainless steel,8mm square hole, with separate bush bearing
Centred forend, satin stainless steel 1.4401/AISI 316
Backset: 55mm
Forend: 24mm
Forend Finish: 316 Stainless Steel
Color: BLACK
Weight(KG): 0.800

Grade 3 - EN12209, approved for fire-rated doors with CE certificate
Lock case size DIN 182 51-1, closed case with sleeves, zinc plated, black painted
