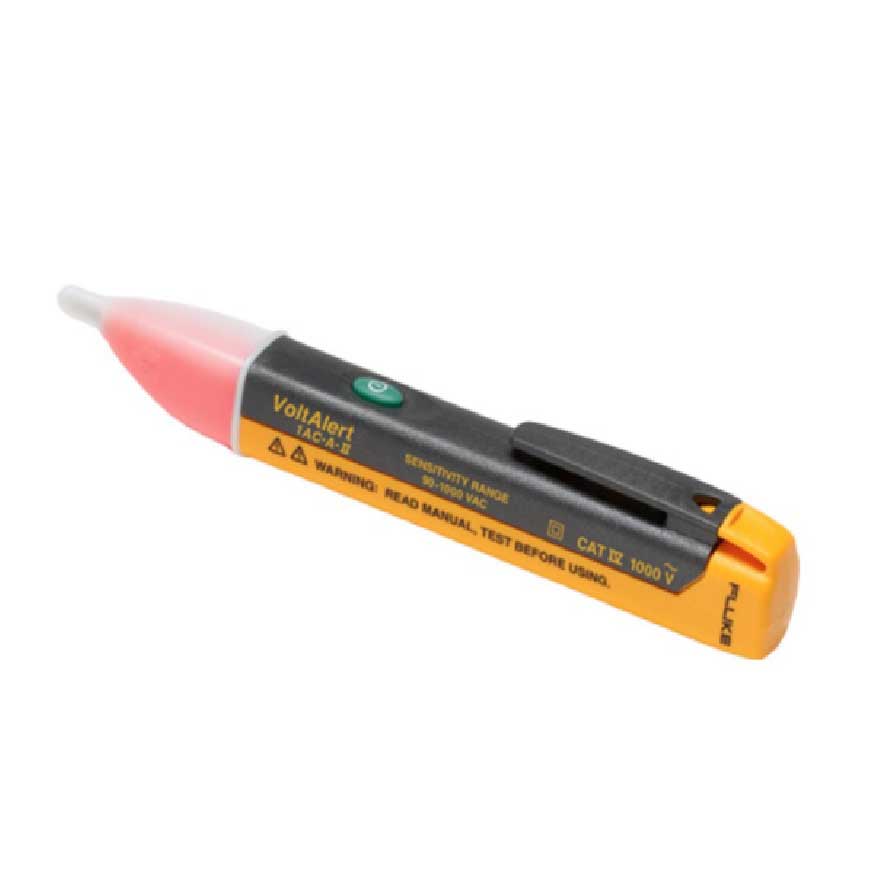

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord.
When the tip glows red and the unit beeps, you know there's voltage present.
Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Color: Yellow
Weight(KG): 0.040
Operating Principles
Senses the steady state electrostatic ?eld produced by AC Voltage through insulation without requiring contact to the bare conductor. A red gLow at the tip and a beeping Noise (if Not switched OFF) indicates the presence of Voltage.
Voltage sensing ranges
NoMinAlly, 90 V AC to 1000 V AC
Detector tip style
Flat-tip
Light source
One Hgh intensity red LED
Agency Approvals
c CSA us, CE, C-Tick
Safety Rating
1000 V, CAT IV
Safety Compliance
Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance
Meets IEC 61326-1:2006
IP Rating
IP 40
Operating Temperature
-10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges
0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40 to 55°C)
Operating Altitude
3000 m
Cleaning
Clean with damp cloth
Batteries
2 AAA alkaline batteries included
