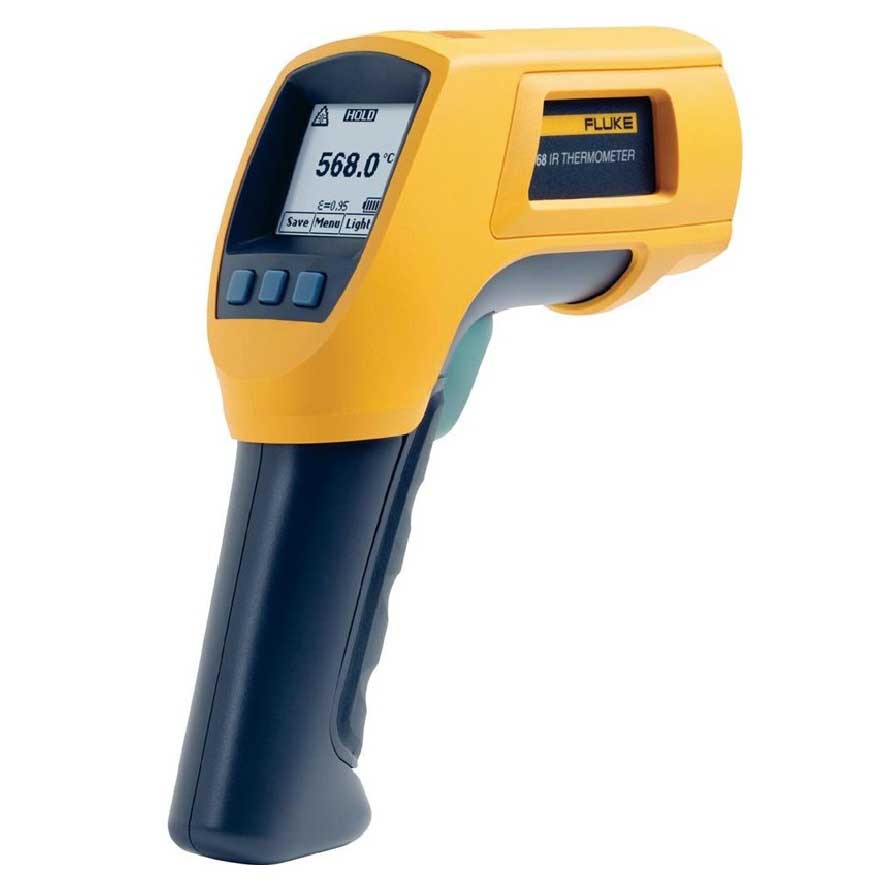

FLUKE 568 INFRA-RED Thermometer
Easily trend and analyze data with included FlukeView® Forms software
Quickly download stored data with USB connection
See your data right away without leaving the site, using the USB and your laptop
Extend your battery life by powering the digital thermometer from your laptop via the USB
Color: Yellow
Weight(KG): 0.700
Infrared Temperature range
-40 °C to 800 °C (-40 °F to 1472 °F)
Infrared accuracy
< 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F);
> 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater
Display resolution
0.1 °C / 0.1 °F
Infrared spectral response
8 µm to 14 µm
Infrared response Time
< 500 msec
Thermocouple Type-K input Temperature range
-270 °C to 1372 °C (-454 °F to 2501 °F)
Thermocouple Type-K input accuracy
-270°C to -40°C:
± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F))
-40°C to 1372°C:
± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater
D:S (distance to measurement spot Size)
50:1
Laser sighting
Single-point laser < 1 mw Output Class 2 (II) operation, 630 nm to 670 nm
Minimumspot Size
19 mm (0.75 in)
Emissivity adjustment
By built-in table of common Materials or digitAlly adjustable from 0.10 to 1.00 by 0.01
Data storage with Date/Time stamp
99 points
PC Interface and cable
USB 2.0 with FlukeView® Forms software
Hi/Low alarms
Audible and two-Colour visual
Min/Max/Avg/Dif
Yes
Display
Dot matrix 98 x 96 pixels with function menus
Backlight
Two levels, Normal and extra bright For darker environments
Trigger lock
Yes
Switchable Celsius and Fahrenheit
Yes
Power
2 AA/LR6 Batteries and USB when used with a PC
Battery life
If used continuously:
laser and backlight on,12 hours; laser and backlight off, 100 hours
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature
-20 °C to 60 °C (-40 °F to 140 °F)
Bead thermocouple Type-K range
-40 °C to 260 °C (-40 °F to 500 °F)
Bead thermocouple Type-K accuracy
± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typicAlly within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)
