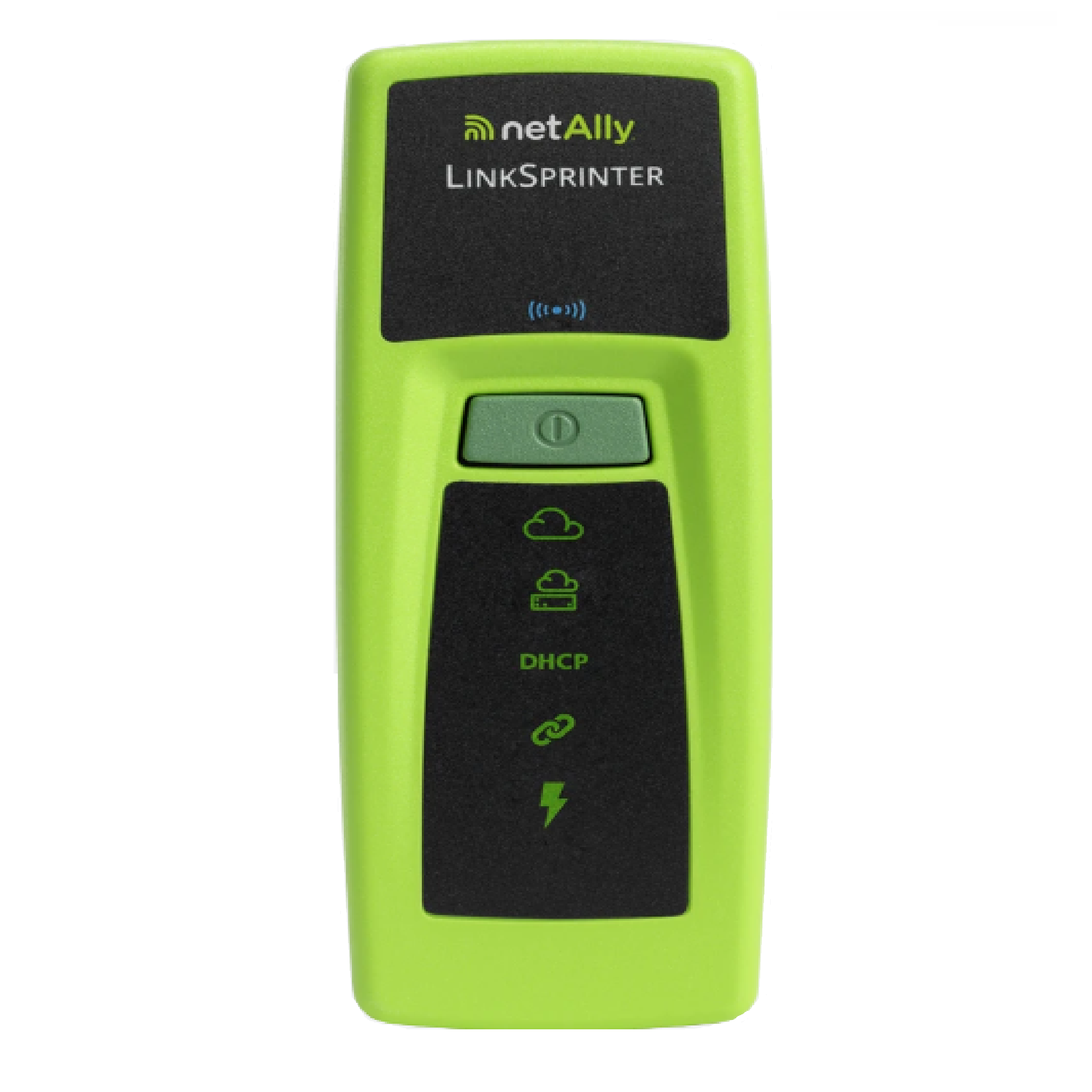

NETALLY LinkSprinter 300 LSPRNTR-300 Discover the nearest switch name and port information via CDP/LLDP/EDP, and verify link speed/duplex and connectivity to TCP/IP networks. Validate Power-over-Ethernet (PoE) voltage from power sourcing equipment (PSE) according to 802.3af/at standards. View detailed test results, add comments, and run cable tests using your mobile device over a Wi-Fi hotspot built into the LinkSprinter. Automate reporting and enable collaboration with test results upload and management via the free Link-Live Cloud Service. Mobile Device Pair your LinkSprinter with your mobile device to discover detailed information on: Port name Nearest switch name, port #, and link speed PoE voltage DHCP server, DNS server, and gateway address Model Server addresses Color: Green Weight(KG): 0.100
General Description Dimensions 4.36 in x 1.6 in x 1.28 in (11.07 cm x 4.06 cm x 3.25 cm) Weight with batteries Model 300: 0.255 lb (0.116 kg) Cable length measurement Measurable cable lengths are from 3 ft (1 m) to 656 ft (200 m) Environmental Operating Temperature and Relative Humidity 32°F to 122°F (0°C to 50°C ), Relative Humidity 5% to 90% Non-condensing Storage Temperature -4°F to 140°F (-20°C to 60°C) Shock and Vibration Random 2g, 5 Hz – 500 Hz (class 2), 1 m drop Safety CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution degree 2 Altitude Operating: 13,123 ft (4,000 m) Storage: 39,370 ft (12,000 m) EMC EN 61326-1:2006 Certifications and Compliance Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association Conforms to relevant FCC standards Wi-Fi Hot Spot Specification Compliance IEEE 802.11b/g Frequency Channels 802.11 Channels 1 thru 11 (Default is 11) Operating Frequency 2.412 ~ 2.484 GHz, ISM Band Regulatory Domain EN 301 489-1/17 Browser Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision)
