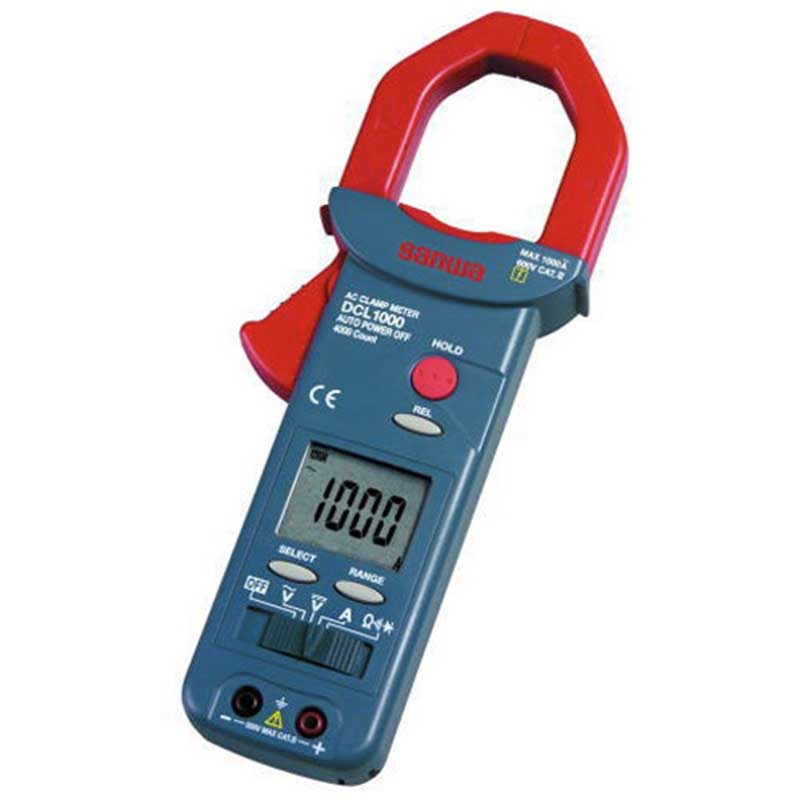

Sanwa Digital Clamp Meter DCL1000

Description
Specification

LightWeight approx. 290g
Large LCD
Easy to use large size data hold button
Sampling rate : 3 times / sec.
AC frequency bandwidth : 50-500Hz
Weight(KG): 0.400

DCL1000
Measuring range
Best accuracy
Resolution
ACA (Average)
400.0A, 1000A
±(1.7%rdg + 5dgt)
0.1A
DCV
400m/4/40/400/600V
±(1.2%rdg + 3dgt)
0.1mA
ACV
400m/4/40/400/600V
±(2.2%rdg + 5dg
0.1mV
Resistance
400m/4k/40k/400k/4M/40MΩ
±(1.22%rdg + 4dg
0.1Ω
Continuity
Buzzer Sound Range : 0Ω to 65Ω (±55Ω) Open Circuit Voltage : Approx. 0.4VDC
Diode test
Open Circuit Voltage : Approx. 1.6VDC
