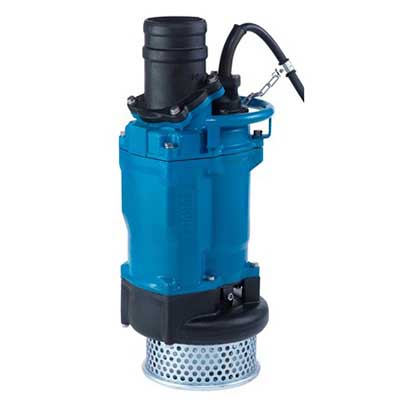

The KTZ-series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. The pump with 7.5 to 15kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal. Weight(KG): 133.000
Control Voltage 415 V Discharge Size 6" Max Flow 2440 L/MIN Max Head 32 M Motor kW P2 11 Kw Dimension A:374mm B: 884mm H: 377mm d: 350mm W1 : 740mm (W1: lowest running water level) MPN 10-10-1149
