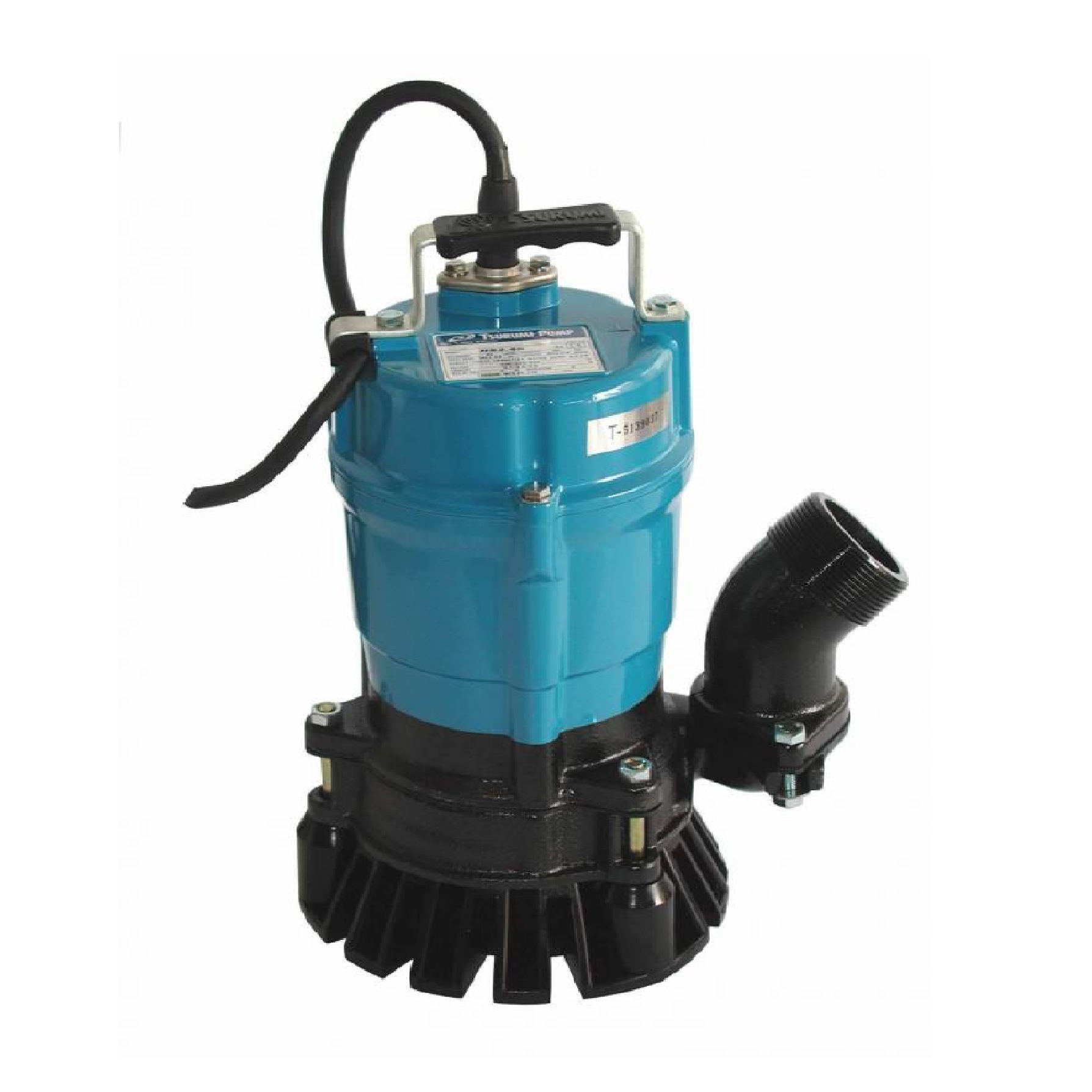

Tsurumi Manual Electric Submersible Pump HS3.75S-51 (3")

Description
Specification

Tsurumi Manual Electric Submersible Pump HS3.75S-51 (3")
Electric submersible pump
Protection class IP68
Depth of submersion max. 20m
Semi-vortex impeller with Agitator
Max. solid handling 7mm
Suitable for rain water
Ground water, sand carrying water
Color: Blue
Weight(KG): 20.000

Dry-type submersible induction motor
Insulation class E, 2 poles, 2812 r.p.m.
Capacitor start
Voltage: 110V/230V, 50Hz, 1-phase
Power input: 1,05kW
Power output: 0,75kW
Nominal current: 10,0A(110V) / 4,6A(230V)
Start current: 27,0A(110V) / 14,0A(230V)
Cable: 10m HO7RN-F 3Cx1mm2 (230V)
Circle thermal protector
3” (80mm) BS-Coupling (threaded flange)
