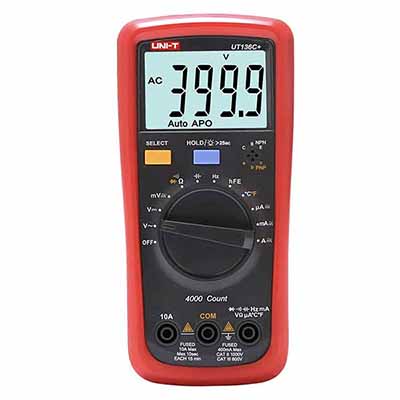

The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
Applications
This series is suitable for civil/commercial use such as HVAC technicians and electricians.
Features
Measures up to 1000V and 10A AC/DC voltage and current
Equipped with 3mm protective sleeve; 2 meters drop proof
Large LCD display; Overload alarm
Quick sampling rate, up to 4 times/s
Quick capacitor measurement (measures 1mF in 4 seconds)
Low power consumption and auto power saving function; long battery service life (>500hrs)
Color: Red
Weight(KG): 0.330
Specifications
Range
UT136C+
DC voltage (V)
1000V
±(0.7%+3)
AC voltage (V)
1000V
±(1%+3)
DC current (A)
10A
±(1%+3)
AC current (A)
10A
±(1.2%+5)
Resistance (Ω)
40MΩ
±(0.8%+2)
Capacitance (F)
40mF
±(3%+5)
Frequency (Hz)
400Hz~40mHz
±(0.1%+4)
Temperature (°C)
-40~1000℃
±(1%+4)
Temperature (℉)
-40~1832℉
±(1.5%+5)
Features
Display count
　
4000
hFE
Transistor measurement
√
Diode/transistor
　
√
Continuity buzzer
　
√
Data hold/Auto power off
　
√
Low battery/Indication
　
√
LCD backlight
　
√
Safety rating
CAT â…¡ 1000V, CAT â…¢ 600V
√
Drop test
2m
√
General Characteristics
Power
1.5V battery (R6) x 2
Display
56.5mm x 36mm
Product color
Red and grey
Product net weight
330g
Product size
175mm x 83mm x 53mm
Standard accessories
Batteries, test leads, temperature probe
Standard individual packing
Gift Box, English manual
Standard quantity per carton
30pcs
Standard carton measurement
390mm x 335mm x 340mm
Standard carton gross weight
12.75kg
