UNI-T UT343D Coating Thickness Meter
Measure coating thickness of ferrous and non-ferrous materials.

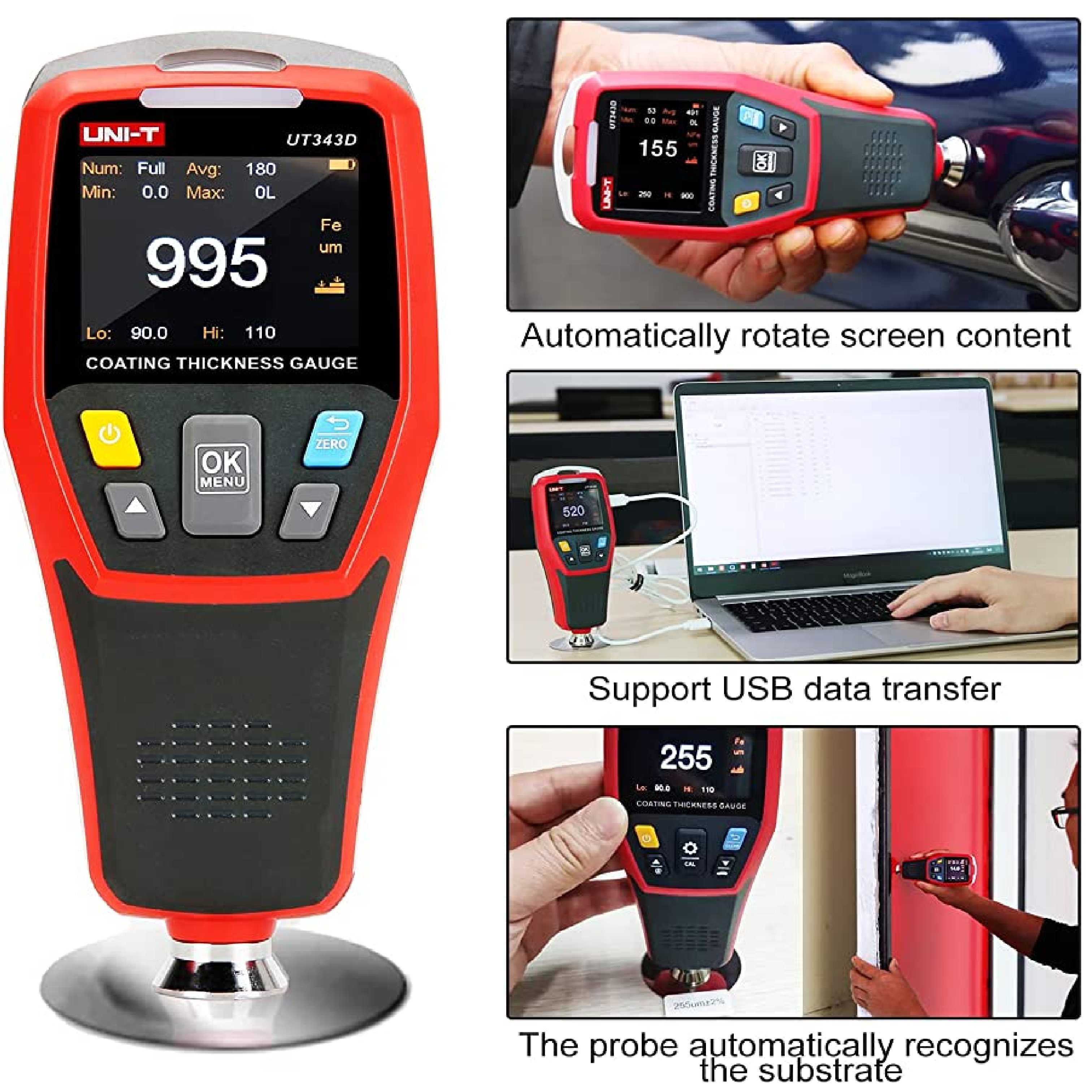

Unique quick test feature allows users to set thickness range and using a 3 color LED and alarm to quickly determine if the coating being tested falls within the preset range, greatly increase work efficiency.
Auto Rotatable, store up to 500 sets of data for further analysis through PC analytical software that is included
Color: Red
Weight(KG): 0.200
Measuring range. 0~1250um
Accuracy. ±(3%H+1)um
Resolution. 0.1um (0~99.9um); 1um (100~1250um)
Measurement method. Single/Continuous
Measurement mode. Max/Min/Avg
Metal type. Ferrous/ non-ferrous
Features
Display type. 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Data storage. 500 groups
Auto power off
Low battery indicator
Power. 3V battery x 2
