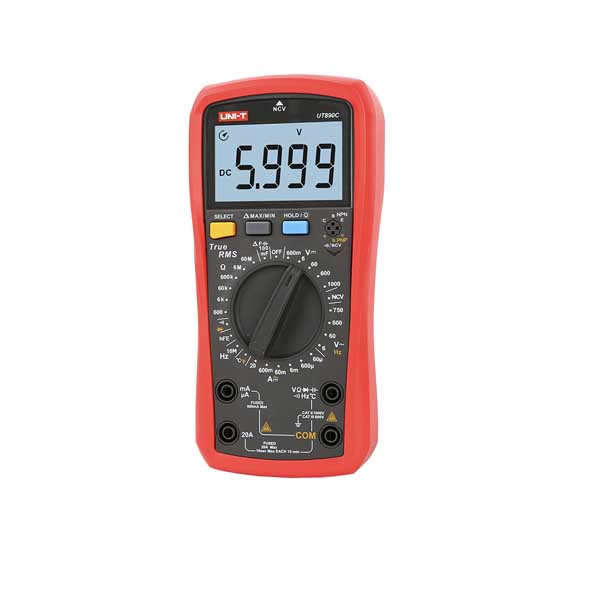

The UT890C/D+ 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection. Electrical switchboards HVAC systems Electrical circuit faults detection Installation or maintenance of electronics/factory equipment Electronics component development, circuit board design Users who need to distinguish between neutral/live wire frequently Color: Red Weight(KG): 0.100
Manufacturer: UNI-T Type of meter: Digital multimeter Measurement: AC current, AC voltage, capacitance, continuity, DC current, DC voltage, frequency, resistance, temperature, transistors' gain hFE Kind of display used: LCD (6000), with a backlit DC voltage measuring range: 0.1...600mV/6V/60V/600V/1kV DC voltage measuring accuracy: ±(0,5% + 2 digits) AC voltage measuring range: 1mV...6V/60V/600V/750V AC voltage measuring accuracy: ±(0,8% + 3 digits) DC current measuring range: 0.01...60µA/6mA/60mA/600mA/20A AC current measuring range: (1) indirect measurement): 0.001...6mA/60mA/600mA/20A DC current measuring accuracy: ±(0,8% + 8 digits) AC current measuring accuracy: ±(1% + 12 digits) True effective value measurement: True RMS Resistance measuring range: 100mΩ...600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ Resistance measuring accuracy: ±(0,8% + 3 digits) Capacitance measuring range: 0.001...10nF/100nF/1000µF/10mF/100mF Capacitance measuring accuracy: ±(3% + 10 digits) Frequency measuring range: 10...10MHz Frequency measuring accuracy: ±(1% + 5 digits) Temperature measuring range: -40...1000°C Test: 0...3V Continuity test: <10Ω, acoustic indication Operating temperature: 0...40°C Weight: 346g Conform to the norm: EN61010 600V CAT III: EN61010 1000V CAT II
