At the heart of the PR 3‑HVSG is a lesson Hilti seems to have learned better than anyone : the most critical specification on a job‑site laser isn’t accuracy, range, or beam color-it’s whether the tool is still working after a clumsy apprentice knocks the tripod over. Hilti engineered this laser with a shock‑absorbing casing, four prominent rubberized handles that double as impact bumpers, and an advanced internal damping system that isolates the rotating prism and pendulum from the forces of a drop. At World of Concrete, Hilti employees spent the day tipping the laser over onto concrete-over and over, from full tripod height, sometimes with a deliberate shove-and the beam stayed true and the housing stayed intact. Passersby flinched; the laser didn’t. That’s the kind of confidence that makes a professional reach for the purchase order.
Add in a green laser diode that stays visible to the naked eye out to 100 feet, a receiver that extends the working diameter to nearly 500 feet, accuracy of ±1/16 inch at 33 feet, rotation speeds from a stationary dot up to 1,000 RPM, a 12‑volt lithium‑ion battery good for 16 hours of continuous runtime, and Hilti’s industry‑leading 20/2/1 warranty with a guaranteed one‑day repair turnaround, and the PR 3‑HVSG makes an awfully strong argument for itself. Let’s walk through every component, every feature, and every application to see if this is the green‑beam rotary that earns a permanent home on your truck.
The Shock‑Absorbing Chassis : Hilti’s Obsession With Keeping the Laser Alive
Rotary lasers are precision optical instruments, and for most of their history, they’ve been treated like eggs by the people who depend on them. A single unlucky fall from a standard tripod-roughly three feet-can knock the pendulum out of calibration, crack the housing, or shatter the rotating prism. The traditional fix is to send the laser back to a service center, wait a week or more, and pay a repair bill that can easily reach into the hundreds of dollars. Hilti decided that this model of laser ownership was unacceptable, and the PR 3‑HVSG wears that decision on the outside.
The laser’s casing is ringed with four large, over‑molded rubber handles positioned at the corners of the housing. These aren’t just grips for carrying; they’re sacrificial impact absorbers. When the laser falls, the handles hit the ground first, compressing and deforming to dissipate the kinetic energy before it reaches the internal components. The frame itself is a rigid, reinforced composite that resists torsion and bending. Inside, Hilti has installed an advanced damping system-essentially a tuned suspension that isolates the pendulum and rotating prism from the sudden deceleration of a drop. The combination of the external handles and internal dampers is what allows the PR 3‑HVSG to survive falls from standard working tripod height (roughly 3 feet) all the way up to a free fall of 4 feet-1.5 meters-without losing calibration or function. A 4‑foot drop onto concrete is not a gentle event; it’s the kind of accident that happens when a scaffold wobbles, a ladder gets bumped, or an inattentive laborer snags a power cord and sends the whole setup tumbling. Most rotary lasers would be dead on impact. The PR 3‑HVSG is designed to be picked up, dusted off, and put back to work.
At World of Concrete, the Hilti team demonstrated this repeatedly. They’d set the laser up on its tripod, spinning a bright green line across the exhibit hall, and then casually swat the tripod leg out from under it. The laser would crash onto the concrete floor, attendees would gasp, and the Hilti rep would reset it and continue the demonstration without recalibrating. It’s a spectacle, but it’s also a real‑world test that mirrors what happens on a muddy commercial site when a skid steer operator backs into a tripod. Hilti didn’t just claim drop protection; they made it the centerpiece of the product’s introduction, and that says something about their engineering priorities.
Green Beam Visibility : The 100‑Foot Naked‑Eye Reach That Saves You From Reaching for the Detector
Richards, Tool Find Reviews’ managing editor and resident laser geek, put it best : “Green is the wave(length) of the future. Okay, my inner geek showed there. Green lasers stay visible to the human eye at longer distances than red.” He’s right. The physics is straightforward : the human eye’s peak photopic sensitivity sits at approximately 555 nanometers, right in the green region of the spectrum. A green laser diode operating near that wavelength appears roughly four times brighter than a red diode of the same power output. In a dimly lit interior-the kind of environment where most ceiling grid layout, pipe alignment, and wall squaring takes place-a green beam is dramatically easier to see without a detector. The PR 3‑HVSG can be seen by the naked eye up to 100 feet indoors, which covers the vast majority of rooms, hallways, and commercial bays.
Outdoors, as with any visible laser, the green beam washes out in direct sunlight. But that’s where the receiver comes in. Hilti’s laser receiver extends the working diameter to 492 feet-roughly the length of one and a half football fields. The receiver picks up the modulated pulse of the laser beam and indicates on‑grade with an audible tone and a visual display. Even though the beam isn’t visible to your eyes at that distance in full sun, the receiver locks on reliably. The PR 3‑HVSG’s green diode pulses at a frequency optimized for Hilti’s receiver lineup, ensuring a strong signal and fast acquisition even in challenging outdoor conditions like bright sun, glare off concrete, or dusty air. The combination of a highly visible green beam indoors and the extended receiver range outdoors makes the PR 3‑HVSG a versatile tool that handles both interior finish work and exterior site layout without needing a separate laser.
Accuracy and Rotation Speeds : ±1/16 Inch at 33 Feet, Four Speeds, and a Stationary Dot
Hilti rates the PR 3‑HVSG for an accuracy of ±0.04 inches at 33 feet-a specification that translates to roughly ±1/16 inch at that distance. Over the full 492‑foot receiver range, the cumulative angular error remains tight, well within the tolerances required for concrete formwork, ceiling grid installation, and pipe rack alignment. This accuracy is maintained by a pendulum self‑leveling system that compensates for tilt within a ±5‑degree range. If the laser is set up on an uneven surface beyond that range, it will flash a warning and refuse to project, preventing the user from working off an unlevel reference. The pendulum locks when powered off to protect the mechanism during transport.
The laser head rotates at four selectable speeds : 0 RPM (a stationary dot for single‑point alignment and plumb transfer), 300 RPM, 600 RPM, and 1,000 RPM. At the slower speeds, the beam pulses more distinctly, which improves the receiver’s ability to lock onto the signal at long range and in bright light. At 1,000 RPM, the rotation is fast enough that the beam appears as a continuous, solid green line to the naked eye-ideal for indoor visual layout where you don’t want to bother with a detector. The ability to stop the rotation entirely and use the laser as a stationary dot is valuable for aligning a specific pipe hanger, establishing a plumb reference point, or squaring a corner using a target. Not all compact rotary lasers offer a 0 RPM mode; its inclusion makes the PR 3‑HVSG more versatile than some of its competitors.
Battery and Runtime : 16 Hours of Green Light from Hilti’s 12‑Volt Li‑Ion Platform
Green lasers have a reputation for eating batteries faster than their red counterparts. The green diode requires more energy to produce its brighter, more visible beam, and that historically meant shorter runtimes, especially on compact lasers with limited battery compartments. Hilti addressed this by powering the PR 3‑HVSG with a 12‑volt lithium‑ion battery pack-the same platform that runs a range of Hilti cordless tools. This isn’t a handful of AA batteries; it’s a serious power source that delivers 16 hours of continuous runtime on a full charge. For a typical workday that involves powering the laser on and off as needed, a single charge can easily last multiple shifts. The battery is removable, so you can keep a spare on the charger and hot‑swap it if the job stretches into the night. Hilti’s charger technology monitors the battery’s health and temperature, optimizing charge cycles to extend its service life.
The 16‑hour runtime claim is based on continuous use with the laser rotating at a moderate speed. Using higher rotation speeds, constant detector‑tracking mode, or operating in extremely cold temperatures may reduce runtime slightly, but the lithium‑ion chemistry holds up far better in cold weather than the alkaline cells used in many competing lasers. The battery compartment is sealed to the same IP64 standard as the rest of the laser, so moisture and dust won’t degrade the contacts or cause internal corrosion. This is a laser you can deploy in the rain, pack up wet, and charge overnight without worrying about the battery terminals.
IP64 Rating : Built for the Rain, the Dust, and the Unpredictable Jobsite
Hilti rates the PR 3‑HVSG at IP64 under IEC 529. The first digit, “6,” means the housing is completely dust‑tight-no fine particulate from drywall, concrete cutting, or site grading can enter the laser body. The second digit, “4,” indicates protection against splashing water from any direction. The laser can handle a sudden downpour, a splash from a muddy puddle, or the spray from a concrete saw without malfunctioning. It is not submersible, and you shouldn’t drop it into a foundation trench filled with water, but for the kind of wet‑weather work that defines construction in the Pacific Northwest, the Gulf Coast, or any northern winter, IP64 provides genuine assurance.
The seals that achieve this rating are designed to be maintenance‑free under normal use, but Hilti recommends periodic service and calibration through their service network to ensure the seals remain intact and the laser remains accurate. The 20‑year warranty and the calibration service agreement, which we’ll discuss shortly, make this routine maintenance a non‑issue for the professional who treats their laser as a long‑term business asset.
Applications : Leveling, Aligning, and Squaring Across Multiple Trades
Hilti markets the PR 3‑HVSG for three core applications : leveling, aligning, and squaring. But those three words encompass a vast range of daily tasks that electricians, plumbers, drywallers, ceiling grid installers, concrete finishers, and general contractors face.
Leveling: Setting a suspended ceiling grid to a consistent height around an entire room is the classic rotary laser task. The PR 3‑HVSG’s 100‑foot visible green beam, combined with its 492‑foot receiver range, allows a single installer to level the entire perimeter track of a large commercial space from one central position. The horizontal beam can be set to a continuous rotation, providing a level reference plane at any elevation. For transferring heights-from a benchmark on a column to the far end of a warehouse floor-the receiver and grade rod make quick work of what would otherwise require a tape measure and a helper. Concrete crews can use the same laser to screed a slab to grade, check formwork elevation, or set anchor bolts at a consistent height. The stationary dot mode allows precise single‑point elevation transfer without rotating the beam, which is useful for plumbing a pipe riser or setting a target on a wall.

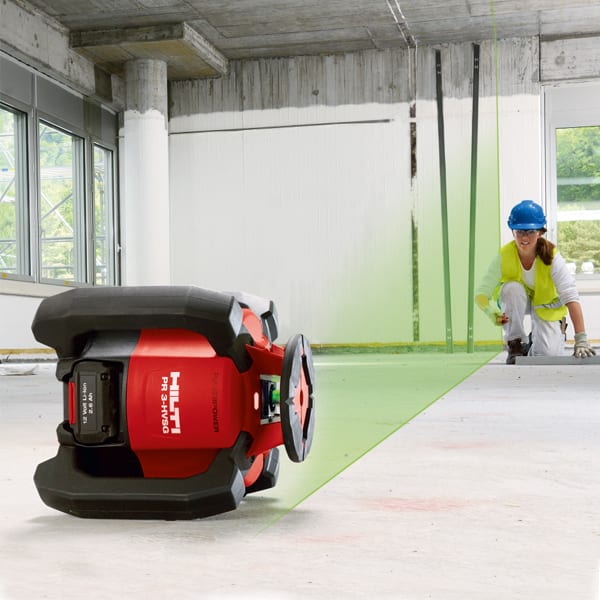

Aligning: Running pipe racks, cable trays, or ductwork through a building requires that all the hangers are at the same elevation and aligned in a straight line. The PR 3‑HVSG’s vertical beam mode-achieved by tilting the laser onto its side-projects a perfectly vertical reference line that can be used to align hangers along a wall or ceiling. This is particularly useful in mechanical rooms and electrical chases where tight coordination is critical. The receiver detects the vertical beam just as it does the horizontal, ensuring alignment even in dark or obstructed areas. For HVAC installers running long runs of spiral duct, the vertical line can serve as a straightness check that eliminates waviness.
Squaring: Walls, partitions, and formwork must be square to the building grid. The PR 3‑HVSG’s stationary dot allows you to precisely establish a 90‑degree layout using the included target plate or a simple Pythagorean‑triple reference. By positioning the laser at a corner and using the dot to mark points, you can square a room layout without a tape measure and chalk line, dramatically speeding up the process. For concrete form setters, squaring the corners of a foundation or a column grid ensures that all subsequent framing and finishes will fit. The laser’s accuracy eliminates the cumulative error that can occur when squaring with a tape measure over long distances.
What Comes in the Kit : Laser, Battery, Charger, Remote, Target, and Case-Ready to Work
The PR 3‑HVSG is not sold as a bare tool that leaves you scrambling for essential accessories. The basic kit includes everything needed to set up and start layout immediately : the PR 3‑HVSG green rotary laser itself, a 12‑volt lithium‑ion battery pack and charger, a remote control for adjusting rotation speed and activating the beam without walking back to the tripod, a target plate for fine‑positioning the beam, and a rugged carrying case with custom foam inserts to protect the laser during transport. The remote control is a significant convenience feature; you can slow the rotation to lock onto a receiver, stop the beam entirely for a single‑point measurement, or power the laser off without leaving the work area.
In addition to the basic kit, Hilti offers several bundled configurations that package the PR 3‑HVSG with other tools from their cordless lineup-drills, impact drivers, saws-often at savings that effectively discount the laser or the additional tools. These bundles are aimed at the contractor outfitting a new crew or adding a complete layout and installation kit to their fleet. The savings can be substantial, and the bundles are listed on Hilti’s website with transparent pricing, a welcome change for a brand that historically kept its prices behind a sales rep’s desk. Check Hilti’s product page for the latest pricing and kit availability.
The 20/2/1 Warranty and Calibration Service : Hilti’s Promise That Changes the Math on Laser Ownership
Hilti backs the PR 3‑HVSG with its 20/2/1 warranty, a program that significantly shifts the total‑cost‑of‑ownership calculation for a rotary laser. Here’s what the numbers mean:
20 years of coverage: Hilti guarantees the laser against manufacturing defects for two decades. If a component fails due to a material or workmanship issue, Hilti repairs or replaces the tool at no charge. This is far longer than the industry‑standard one‑ to three‑year warranties, and it reflects Hilti’s confidence in the engineering and assembly of the PR 3‑HVSG.
2 years of full service coverage: For the first two years of ownership, Hilti covers all service costs, including wear and tear. If the laser is damaged during normal use-a cracked housing, a scratched lens, a worn switch-Hilti repairs it without charging parts or labor. This is nearly unheard of in the tool industry, where warranties typically exclude consumables and damage. It means that for the critical first two years, when a new laser is most likely to experience an accident, your repair risk is zero.
1‑day repair turnaround: If the laser needs service, Hilti commits to a guaranteed one‑day repair turnaround. You ship the laser or drop it at a Hilti center, and within one business day the repair is completed and the laser is on its way back to you. For a professional who can’t afford to be without a layout laser, this guarantee is worth its weight in gold. It eliminates the uncertainty and multi‑week delays that plague typical tool repair channels.
The warranty also includes access to Hilti’s calibration service, ensuring that the laser remains within its stated accuracy specification throughout its life. Regular calibration is recommended for any rotary laser used in professional construction, and Hilti makes it convenient and affordable through this program. When you factor the warranty coverage into the purchase price, the PR 3‑HVSG’s upfront cost begins to look like a long‑term investment rather than an expense.
Technical Specifications at a Glance
| Specification | Hilti PR 3‑HVSG |
|---|---|
| Laser Color | Green (Class 2) |
| Accuracy | ±0.04 inches at 33 feet (±1/16 in at 33 ft) |
| Visible Range (Indoors) | Up to 100 feet (30 m) |
| Range with Receiver (Diameter) | 492 feet (150 m) |
| Rotation Speeds | 0, 300, 600, 1,000 RPM |
| Self‑Leveling Range | ±5 degrees |
| IP Rating | IP64 (dust‑tight, splash‑proof) |
| Drop Protection | Survives 4‑foot (1.5 m) free fall |
| Power Source | 12V Li‑Ion battery (removable) |
| Runtime | Up to 16 hours (continuous) |
| Operating Temperature | 14°F to 122°F (−10°C to 50°C) |
| Warranty | 20/2/1 (20 years coverage, 2 years full service, 1‑day repair turnaround) |
| Kit Includes | Laser, Li‑Ion battery & charger, remote control, target plate, carrying case |
| Available At | Home Depot, Hilti stores, Hilti website |
Is the PR 3‑HVSG the Right Hilti Rotary Laser for You ?
Hilti’s rotary laser family now includes the long‑range PR 30‑HVS and the more compact PR 3‑HVSG. Choosing between them comes down to distance and application. If your work regularly involves shooting elevations across a 600‑foot commercial pad or checking grade on a multi‑acre site, the PR 30‑HVS with its extended range is the better tool. But if the majority of your layout happens within a 200‑foot radius-commercial interiors, residential foundations, suspended ceilings, pipe racks-the PR 3‑HVSG covers that ground admirably while being lighter, more compact, and easier to transport. It’s also likely at a lower price point than its big brother, making it more accessible to independent contractors and smaller crews.
The green beam makes a noticeable difference indoors, where you can often work without a receiver, saving setup time and batteries. The drop protection and robust chassis mean you can deploy the laser in active work areas without the constant anxiety of a catastrophic fall. And the 20/2/1 warranty effectively eliminates the financial risk of long‑term ownership; you’re not going to be hit with a surprise $300 repair bill in year three. That warranty alone can justify the premium over a less expensive laser, especially if you view layout tools as capital equipment rather than consumables.
The Bottom Line : A Green‑Beam Workhorse Built to Outlast the Jobsite, and the Contract, and Probably Your Next Truck
The Hilti PR 3‑HVSG Green Rotating Laser is not the cheapest rotary laser on the market, and it doesn’t try to be. It’s built for professionals who understand that the cost of a downed laser-in repair bills, in rental fees, in project delays-far exceeds the savings of buying a budget instrument. Hilti invested heavily in the physical durability of this tool : the shock‑absorbing handles, the internal damping system, the IP64 seals, the 4‑foot drop rating. They invested in the green diode for visibility, the lithium‑ion battery for runtime, and the receiver compatibility for outdoor range. And they backed it all with a 20/2/1 warranty that sets a new standard for the rotary laser industry.
If you hang ceilings, align pipe, square walls, or set concrete forms, and you want a laser you can treat like a tool rather than a fragile scientific instrument, the PR 3‑HVSG deserves a very close look. It’s available now at Home Depot, through Hilti’s website, and at Hilti Centers. Check the bundle pricing-the savings on a kit with additional Hilti cordless tools can be significant. Whether you buy it as a standalone or as part of a larger Hilti ecosystem, you’re buying into a promise : that this laser will survive the fall, stay accurate, and keep you working. In a world where downtime is expensive, that’s a promise worth paying for.
